Air-cooled mold temperature machine | Air-cooled thermostat | Air-cooled heater
Advantages: Because some customer workshops do not have circulating water pumps for cooling water towers, for conventional constant temperature control machines, there is no cooling circulating water, and the mold temperature cannot be used. The problem is that the natural wind is used to take away the heat, and it can be used after plugging in the power supply, which is very convenient to use.
一、Features:
1. This machine uses natural wind to cool the evaporator.
2. The machine can choose water or heat medium oil as the heat transfer medium according to the needs.
3. The machine is equipped with a PID intelligent automatic calculation temperature controller, which can accurately display and control the temperature difference of the mold within ±1°C of the required temperature.
4. The two-stage heating structure design can increase or decrease the power according to the required temperature, and with the special heating structure, it can save time and electricity.
二、Features:
1. With heating and constant temperature functions, it can meet the requirements of any product for molds.
2. High-precision configuration, small size, suitable for high-precision molding workshop.
3. Adopt imported thermostat, which can accurately control the temperature within the range of ±1°C.
4. The user-friendly operating system can display the cause of the fault at any time when the fault occurs.
5. Easy-to-remove design, easy to clean and maintain.
三、Safety protection function
1. Power phase loss and reverse phase protection and indicator lights
2. Overload protection of heating coil
3. Pump overload protection and indicator light
4. Oil spill protection and reserved connection
5. Butterfly valve design, operation and maintenance are absolutely safe
6. Pump reverse protection and indicator light
7. Lack of media buzzer alarm protection and indicator light
8. Built-in ultra-high temperature protection and thermostat
9. Automatic oil return device and reserved interface, clean and wasteless when changing molds
10. Explosion-proof oil circuit design, operation and maintenance are absolutely safe

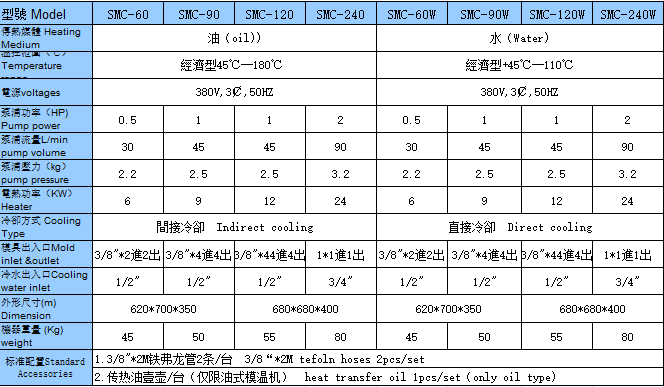

四、technical parameter

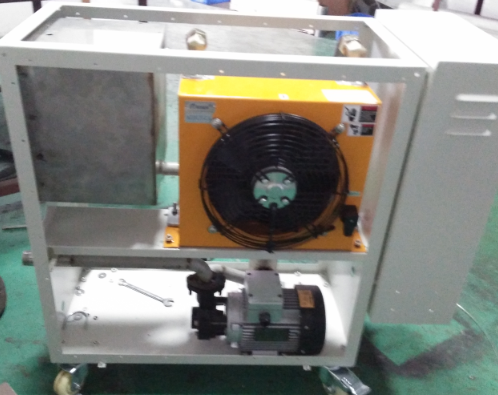

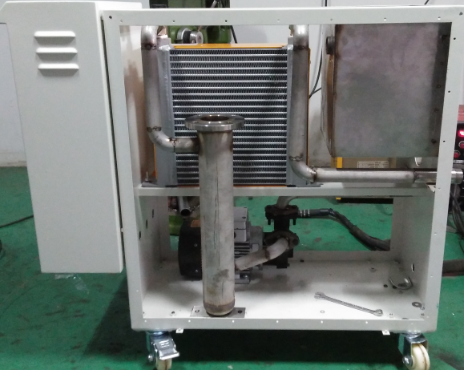

五、picture display
Gu'an Machinery air-cooled mold temperature machine | air-cooled thermostat | air-cooled heaters are widely used in
In the plastics industry, the injection molding, blistering, and chiller functions can shorten the mold opening cycle and accelerate the product setting, so that the product will not be deformed and shrunk, but also improve the surface finish and enhance the perspective.
In the electroplating industry, the thermostat helps to stabilize the metal ions, so that the metal ions quickly attach to the electroplated parts.
In addition, it can also be used in medicine, chemical industry, environmental protection water treatment, mixing station, hardware industry, electronic industry, food industry, bleaching and dyeing industry, fish farming industry, sauna hot bath, central air-conditioning, central hot water and other industries that require temperature .
