TPU, TPE, TPR, TPO, TPV, TPX Elastomer Crusher

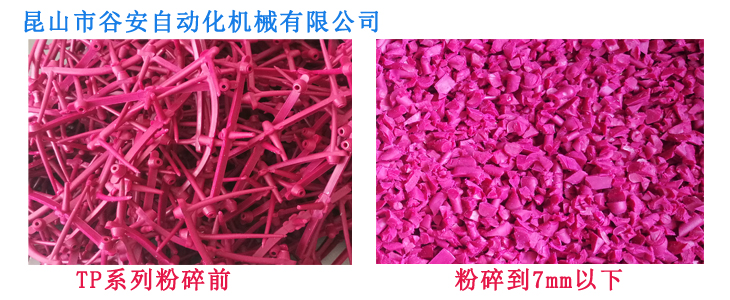

All materials in the TP series of elastomers are crushed

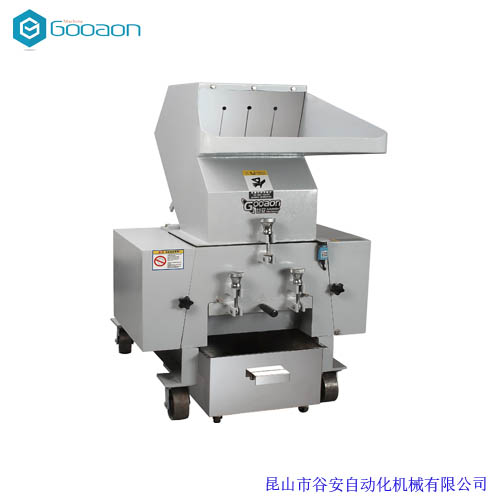

Guan thermoplastic TPU, TPE, TPR, TPO, TPV elastomer shredder

Guan elastomer crusher is suitable for the crushing of thermoplastic TPU, TPE, TPR, TPO, TPV elastomer rubber,

It is also suitable for crushing sticky materials such as hot melt plastics and raw rubber.

Frequently asked questions about Guan Thermoplastic TPU, TPE, TPR, TPO, TPV Elastomer Shredder:

Q: Why does my ordinary crusher stick the knife, clump and go down when crushing soft rubber?

A: Because the soft rubber material has elasticity, when the cutting angle is not appropriate, the ordinary tool is not easy to cut. Moreover, the soft rubber material is generally hot melting, and it will be melted at high temperatures, and adhesions will occur.

Q: Ordinary hard plastics will be hot when crushed, how can they not stick?

Answer: Ordinary plastics have high hardness, are relatively brittle, and can be broken through the impact, extrusion and cutting of the tool. Moreover, ordinary materials are not easy to melt in a hot environment, so there will be no sticking knife phenomenon.

Q: How high is the temperature when the shredder is working?

Answer: When the pulverizer crushes the material, after 30 minutes of continuous work, the temperature of the material in the crushing chamber can rise to 60-90 ° C (depending on the characteristics of the material, there will be a difference, the more difficult to cut the material, after repeated friction, the higher the temperature will be)

Q: TPU, TPE, TPR, TPO, TPV and other materials, when the temperature rises to what extent will it stick?

A: Generally when the temperature rises above 50 °C, it will stick (some of them will start to stick to 40 °C)

Q: My current ordinary shredder can't crush soft glue, can it be converted into a crusher that can crush soft glue?

A: No, because the speed, cutting angle, cooling method, and tool material are not the same.

Q: Why can Guan TPU, TPE, TPR, TPO, TPV crusher continuously crush soft rubber?

A: Gu'an's elastomer crusher has been designed from the following aspects:

1. Cutting angle: the cutting angle designed for soft rubber material makes the cutting of soft rubber more efficient and labor-saving;

2. Speed: The speed designed for soft rubber materials does not affect the crushing efficiency while efficiently cutting off;

3. Tool material: high hardness of high quality steel, decisive cutting of soft glue, effectively reduce friction;

4. Cooling mode: The fuselage sandwich has a water cooling system, which effectively reduces the working temperature (only available in machines above 10HP, too small to install).

Q: In addition to crushing TPU, TPE, TPR, TPO, TPV glue, ordinary hard plastic can be crushed?

A: Yes, this machine can continuously crush soft glue, but also can crush ordinary engineering plastics such as: ABS, PP, PC, PVC, etc., and the material crushing effect for fiberning is also very good, the wear resistance of the tool is more than 3 times that of ordinary pulverizers.

However, this machine is not suitable for crushing large blocks of rubber head material with a thickness of more than 50mm, in case of such materials, please consult our business personnel, they will recommend you the appropriate model.

Guan thermoplastic TPU, TPE, TPR, TPO, TPV elastomer crusher features:

1. The feeding hopper and the receiving box are made of stainless steel to ensure that the material is clean

2. The crushing chamber is fully polished and grinded, and the overall processing after welding of the thickened steel plate is good, and the precision is good;

3. The knife holder adopts wire cutting processing to ensure accuracy, perfect cooperation with the central shaft, and clean assembly

4. The central shaft and the knife holder are hydraulically assembled and formed, without any solder joints, without hiding materials, which is conducive to cleaning, and avoids deformation of the central shaft due to sintering

5. The blade knife adopts scissor structure, the gradual cutting effect is good, and the noise is low

6. The claw knife type adopts symmetrical step arrangement to disperse the impact load, so that the small power can crush large-size products

7. The tool adopts imported alloy inlaid steel material, and the perfect material ensures excellent quality

8. Compact structure design, so that the model for the side crushing immediate recovery footprint is small, flexible and convenient

Guan thermoplastic TPU, TPE, TPR, TPO, TPV elastomer crusher features:

1. The feeding hopper and the receiving box are made of stainless steel to ensure that the material is clean

2. The crushing chamber is fully polished and grinded, and the overall processing after welding of the thickened steel plate is good, and the precision is good;

3. The knife holder adopts wire cutting processing to ensure accuracy, perfect cooperation with the central shaft, and clean assembly

4. The central shaft and the knife holder are hydraulically assembled and formed, without any solder joints, without hiding materials, which is conducive to cleaning, and avoids deformation of the central shaft due to sintering

5. The blade knife adopts scissor structure, the gradual cutting effect is good, and the noise is low

6. The claw knife type adopts symmetrical step arrangement to disperse the impact load, so that the small power can crush large-size products

7. The tool adopts imported alloy inlaid steel material, and the perfect material ensures excellent quality

8. Compact structure design, so that the model for the side crushing immediate recovery footprint is small, flexible and convenient

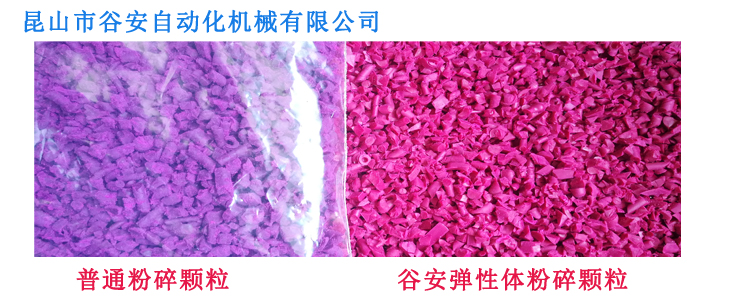

Comparison of the pulverized particles of the ordinary pulverizer and the special pulverizer for Gu'an elastomer
1. There are more powders, and the ordinary pulverizer granules powder is significantly more than that of the Gu'an elastomer pulverizer
2. The shape is different, the ordinary crusher particles are rounded into a clump, and the Gu'an elastic crusher is granular
3. Aesthetics, the ordinary crusher seems to be a soft ball, the Gu'an elastic crusher out of the edges and angles, the particles are uniform and beautiful
4. Temperature changes characteristics, the temperature of ordinary crusher discharge is significantly higher than that of Gu'an elastomer crusher, for thermoplastic materials, the temperature rises, indicating that the original characteristics of the material also change, which is unacceptable to general customers.
