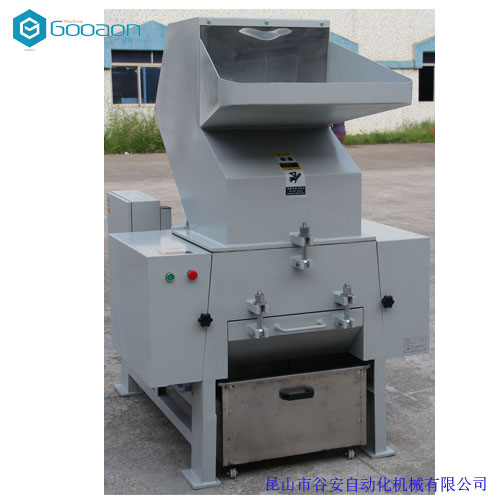

Rubber head material centralized pulverizer

所属分类：Injection Auxiliary Equipment
型号：30HP-100HP
浏览次数：4210次
发布日期：2019/9/1 18:09:47
简介：Plastic head material centralized crusher, Suzhou plastic crusher, plastic crusher, plastic crusher wholesale to find Suzhou Gu'an Machinery

我要询价

产品概述

Suzhou plastic shredder | plastic shredder | plastic shredder wholesale

Suzhou plastic shredder, plastic shredder, plastic shredder wholesale to find Suzhou Gu'an Machinery

It is equipped with an overload protection device, a power supply chain protection system, and a cleaning tool protection device. It is absolutely safe to operate and clean; it ensures the safety of maintenance personnel.

The tool material adopts imported high-quality SKD-11 (optional). Durable.

The standard configuration of screen mesh is 10HP & below is 8MM, the standard configuration is 15HP & above is 10MM, other specifications can be customized.

Unique design, minimum horsepower, but good efficiency, and equipped with double-layer noise reduction equipment, low noise.

When crushing transparent materials and white materials, the feeding hopper and screen should be made of stainless steel, so as not to peel off the paint during crushing, pollute the raw materials and affect the color.

Easy-to-remove design: the feeding hopper, the scraping knife and the filter can be disassembled and easy to clean.

Suzhou plastic shredder | plastic shredder | plastic shredder wholesale

Suzhou Gu'an plastic shredder, plastic shredder, plastic shredder features

1. Double-layer feeding hopper, filled with sound insulation material, effectively reducing working noise;
2. The crushing chamber is fully polished and ground, and the thickened steel plate is processed as a whole after welding, with good precision;
3. The tool holder is processed by wire cutting to ensure the accuracy, it is perfectly matched with the central axis, and the assembly is clean and neat
4. The central axis and the tool rest are assembled and formed by hydraulic pressure, without any solder joints and no hidden materials, which is conducive to cleaning, and at the same time avoids the deformation of the central axis due to welding.
5. The top knife block of the blade-type knife holder is cut from the same thick steel plate as the knife holder, which is beautiful and elegant, will not shift or fall off over the years, and avoid welding slag accumulation at the same time.
6. The claw knife type adopts a symmetrical stepped arrangement, which disperses the impact load and makes the crushing of large-sized blocks more labor-saving. Each knife can be rotated 180 degrees for secondary use, reducing the number of sharpening.
7. The tool is made of imported alloy steel. According to the characteristics of different materials, SKD-11 or SKH2 inlaid steel is selected, and the perfect material ensures excellent quality
8. Above SMD-150, it is equipped with a cooling water device for the crushing chamber, which can effectively reduce the working temperature of the crushing chamber and avoid material agglomeration.

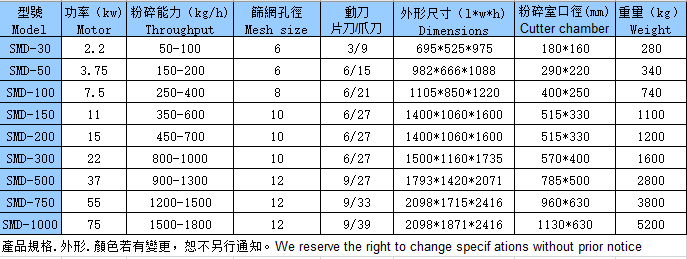

Suzhou Gu'an plastic shredder, plastic shredder, plastic shredder product parameters

Suzhou plastic shredder | plastic shredder | plastic shredder wholesale to find Suzhou Gu'an Machinery

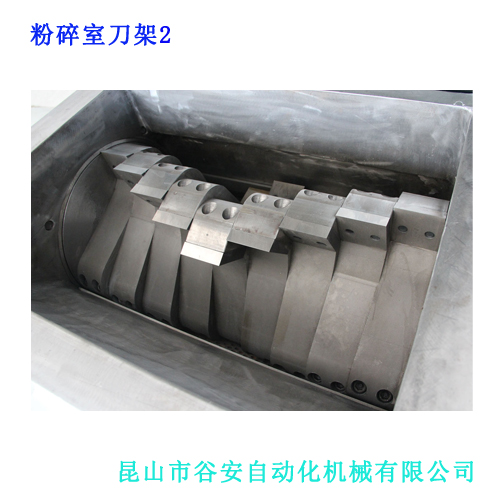

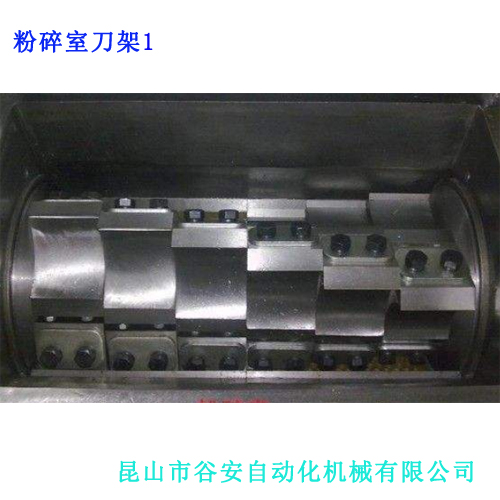

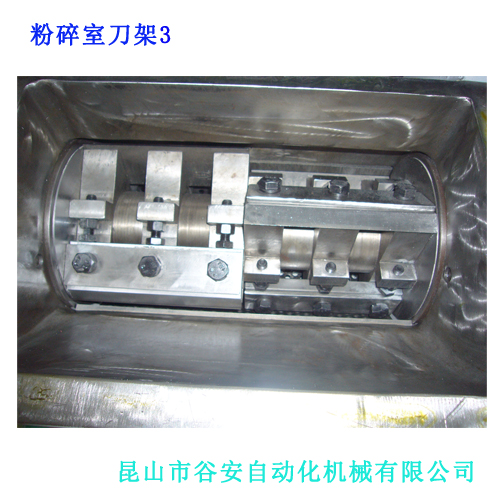

谷安Gu'an plastic shredder, plastic shredder, plastic shredder tool holder structure
Gu'an Machinery specializes in the manufacture of pulverizers. According to the characteristics of different materials, more than 20 kinds of knife holders with different structures have been designed. The materials of special knives equipped with different knife holders are also different. They specialize in the pulverization of special materials. Machine manufacturers only have 1-2 types of tool holders for crushing all materials. If the tool holder and the tool are not selected properly, the service life and performance of the machine will be greatly reduced. For the specific tool holder selection, you can consult Gu'an mechanical technical engineer. Gu'an's commonly used tool holders are as follows:

Gu'an Machinery also provides you with the following models

Crushing and Recovery Series Centralized Crusher Medium Speed Crusher Slow Crusher Silent Crusher

Elastomer Crusher Styrofoam Crusher Film Crusher Rubber Crusher

Online crushing series Edge material online crusher Multi-station online crusher Cup making online crusher Blister online crusher

Sheet online pulverizer Film online pulverizer

Secret Destruction Machine Circuit Board Shredder Chip Shredder Card Shredder ID Card Shredder Bank Card Shredder Mobile Phone Card Shredder

Pulverizer series

Rubber Cutting Machine Desktop Nitrile Rubber Cutting Machine Styrene Butadiene Rubber Cutting Machine

Knife Sharpener Crusher Blade Sharpener Crusher Blade Sharpener

Shredding series Pipe shredder Block shredder Tire shredder Plastic drum metal can shredder

Special material crushing Low temperature type crusher Acid and alkali resistant type crusher Wear-resistant type crusher Flammable explosion-proof type crusher Easy stick type crusher
