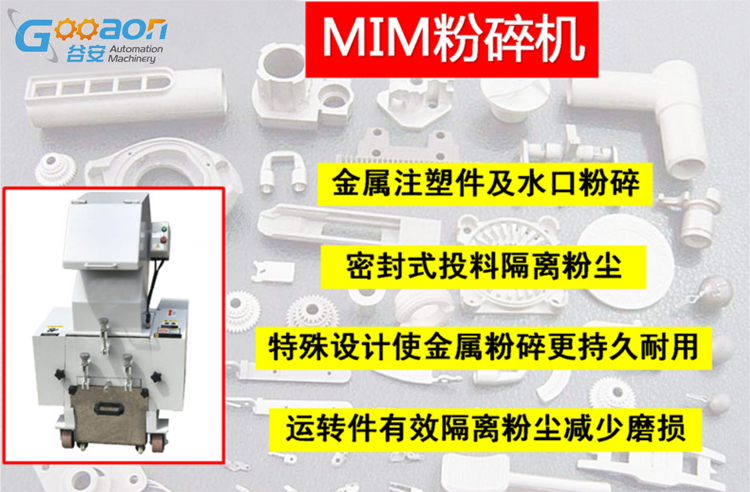

Gu'an Metal MIM Injection Pulverizer Ceramic Powder Injection Pulverizer

Gu'an metal injection pulverizer, this series can pulverize: iron powder injection parts, stainless steel powder injection parts, ceramic powder injection parts, MIM injection parts and other metallurgical workpieces

This machine is specially designed and manufactured for metal powder injection molding parts and ceramic powder injection molding parts.

1. The raw material contains about 85% iron powder, stainless steel powder, alloy powder, or ceramic powder;
2. The product after injection molding has high hardness and strong wear resistance;

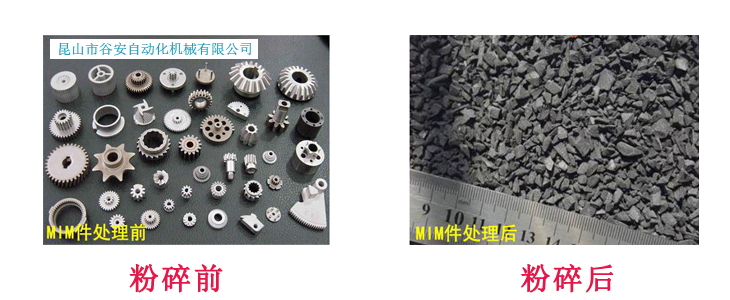

3. The nozzles, defective products, and rubber head materials produced by injection molding can be crushed and then recycled.

The requirements for the pulverizer for metal powder injection parts:

1. Because the product contains a large amount of metal powder, the product has high hardness and cannot be pulverized by ordinary pulverizers.

2. Because the product contains a large amount of metal powder, the requirements for the pulverizer tool are very high, which must be wear-resistant and impact-resistant.

3. Most of the metallurgical injection molding parts have very high requirements, so the products cannot be contaminated during the crushing and recycling process, and the sealing performance of the crusher is high.

4. Since the product contains a large amount of metal powder, dust will be generated during the crushing process. These dusts must have a dedicated powder discharge device, otherwise it will cause serious wear and tear to the running parts of the crusher.

Gu'an special crusher for metal powder injection molding is designed and manufactured for the metallurgical injection molding industry, and has formed a good use in the metal injection molding industry. After a large number of practical use cases, the design has been continuously improved to make this model step by step. be improved to make it more suitable for the needs of customers.

The advantages of Gu'an metal injection crusher:

1. The tool is made of special steel, which will not chip when crushing and cutting metal parts, and is durable and wear-resistant;
2. The ingeniously designed cutting angle makes crushing more labor-saving, and small models can crush metal products without high horsepower;
3. The particle size of the raw material for metal powder injection molding is generally 0.1-10µm, so each part of this pulverizer has high sealing performance to prevent metal powder from entering the operating parts of the machine and causing wear;
4. Since the pulverized material is made of high-hardness alloy powder, the materials where the pulverizer contacts the material have high wear resistance.
5. There are holes and grooves for powder discharge in the chassis to prevent dust from entering the bearing.
6. Gu'an metal injection pulverizer has good appearance and sealing performance, which can effectively prevent metal dust from leaking during pulverization.
