In-line traction shredder for cup making water outlet material

Blister mechanism in-line traction shredder for cup water mouth material

Gu'an cup online crusher: In the process of producing beverage cups, cup lids, bowls and other products, when the stamping and forming rear end is packed, there will be a mesh sheet scrap left.

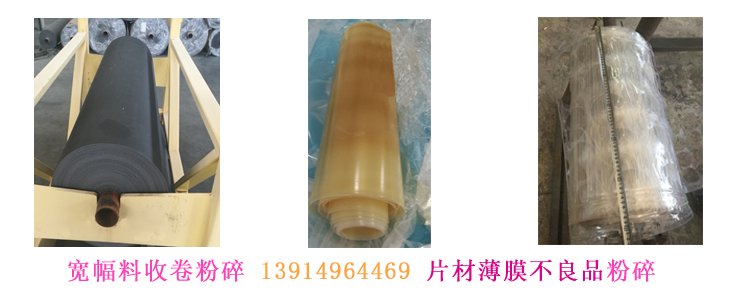

The traditional method is to collect the roll and transport it to the crushing room for centralized crushing, which has several disadvantages:
1. Material contamination may be caused during handling;
2. During the handling process, the material will absorb the water in the air again, the material will oxidize, and further drying is required when reusing;
3. Handling and manual input crushing to generate secondary labor and site costs;
4. The mesh material is rewinded into a larger size, and the power requirements of the pulverizer are relatively large when it is crushed, but the actual crushing efficiency is not high, resulting in energy waste;
5. After the waste is crushed, it needs to be transported back and then manually added to the raw materials for use, resulting in labor waste.

Blister mechanism in-line traction shredder for cup water mouth material

In view of the above problems, Sanchuang company independently developed and designed a cup-making online immediate crushing recycling machine, this model can be the mesh sheet waste generated after the cup making, in the waste discharge at the same time automatically pulled into the crushing, this process of materials without moisture absorption, non-pollution, crushed debris can be immediately transported to the storage barrel by the fan for recycling. And because the edge material is not unwinded, as a thinner sheet crushing, the power of the shredder is relatively small, saving more than 30% of the electrical energy.

Blister mechanism in-line traction shredder for cup water mouth material

The features of this model are:
1. The length of the scrap material is not limited, and the material is automatically fed through the traction system built by the pulverizer, eliminating the need for manual feeding;
2. Sheet or film edge material is automatically pulled into the crushing chamber by traction device;
3. The extraction speed of the traction device can be adjusted as needed, so that the crushing speed is consistent with the discharge speed of the host;
4. The crushing knife adopts the principle of scissor structure, with high efficiency and low cutting effort;
5. Centralized control of each system, easy to operate;
6. After crushing, the material can be transported immediately by fan;
7. You can choose a small screw to force feed the thinner fragments that are not easy to unload;
8. It is used for the main machine to crush while producing, and can also realize immediate recovery, save raw material costs, and reduce labor input;
