一、Mixing principle：
Using the rapid rotation of the screw, the raw materials are lifted from the bottom of the barrel to the center, and then scattered in an umbrella shape and returned to the bottom, so that the raw materials are rolled up and down in the barrel and stirred, and a large amount of raw materials can be uniformly mixed in a short time. 2. Features of large vertical stainless steel heating mixer: Powder mixer is mainly used in chemical powder, calcium carbonate activation treatment, plastic powder, ceramic color glaze and other industries. It is suitable for granulation, masterbatch color mixing, modification, homogenization, stirring processing, etc.
二、Scope of application
Mainly used in dicing, granulation, plastic granulation, color masterbatch manufacturing, plastic modification, recycling of recycled materials, large injection molding and other industries, as well as chemical powder, calcium carbonate activation treatment, plastic powder, ceramic color glaze, etc. industry
三、Product Description
1. The technology originates from Taiwan. Combined with our company's many years of experience in manufacturing auxiliary equipment for screw granulators, we have successfully developed a high-efficiency and energy-saving mixing equipment. The whole is made of stainless steel, which is resistant to acid, alkali and corrosion. It occupies a small area and is energy-saving and efficient. , Reasonable design, beautiful appearance, durable.
2. The parts in contact with the material are all made of imported stainless steel, and the blades are made of 5MM thickened stainless steel. To ensure durability, and to lathe the inner and outer circles.
3. The operation is simple, all high-quality all-copper wire motors are used, and the motor power is configured according to the relevant model of the mixer: 2.2KW--15KW, and the spindle speed is 350 rpm. And a set of electric control box is randomly distributed, which is convenient for operation and control. A safety bracket is installed at the bottom of the motor, and the belt pulley is designed with a full cover. The motor seat is welded and fixed by the national standard material, and the safety factor is high.
4. The main shaft is made of stainless steel seamless pipe, and the feeding pipe is made of thickened stainless steel pipe.
5. The main shaft has high concentric precision and stable operation, which can ensure that it will not be deformed for many years under correct use conditions. Equipped with imported bearings and automatic refueling system, the equipment is automatically refueled during normal operation, and the sealing part adopts Taiwan TTO seals to ensure the durability of the equipment.
6. The discharge port is made of stainless steel mirror panel, which has high brightness and high smoothness. Humanized design of the discharge port, the height from the ground is the same as the height of the packaging bag, which is convenient for receiving and packaging.
7. A stainless steel safety fence is installed at the feeding port to prevent foreign objects, raw material bags, and hands from entering, so as to ensure the safety of machinery and operators.
8. The bottom is specially equipped with a clearing port and a pumping plate, which is easy to clean when changing different raw materials and stirs, and the operation is convenient, fast and safe. Top opening and sealing. The welded joints inside the barrel are polished smooth.
9. Design electronic digital display automatic timing function! The mixing time can be freely set according to the situation. It is equipped with an electronic control safety protection device and a numerical control electrical box to ensure safe operation. When a dangerous position is opened, the main machine will be powered off immediately. Button control, safe and reliable, long service life. The machine features: low power consumption, high efficiency, and excellent automation procedures, greatly reducing labor intensity.
10. The size of the model can be designed according to customer requirements 500KG----10 tons, and the heating and drying type can be purchased.
11. The models are available from stock all year round, 500KG, 1000KG, 1500K, 2000KG, 3000KG, 5000KG quality assurance.
四、Features:
1. The mixing time of this machine is 10-30 minutes, and the mixing volume of 12 tons to 14 tons can be completed every day.
2. This product relies on the action of the screw, so that the raw materials are continuously circulated and stirred in the barrel to achieve the effect of mixing and color mixing, and shorten the time.
3. The opening and closing of the return port can be adjusted, and can be adjusted arbitrarily to achieve a better balance between the return and feed.
4. All materials in the barrel including the barrel are made of stainless steel.
5. It is suitable for mixing and stirring of various plastic raw materials and color masterbatches, and the mixing effect of new secondary materials and color masterbatches is better.
6. The materials of the parts in contact with the equipment and the raw materials are all made of stainless steel, which is easy to clean and avoid corrosion.
7. Equipped with electronic control safety protection device to ensure safe operation.
Large Vertical Mixer | Vertical Mixer | Vertical Mixer

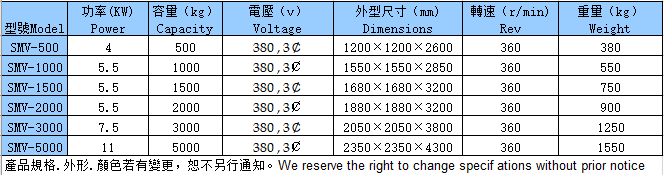

五、technical parameter
