Features of single shaft shredder:

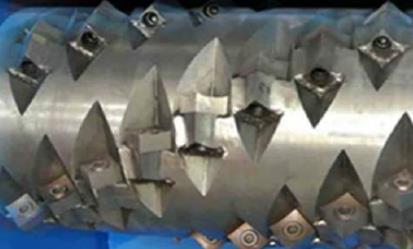

1. The blade on the rotor is removable, which is convenient for cleaning, maintenance and maintenance;

2. The moving knife adopts the "V"-shaped installation method, which cuts the material evenly during the whole shredding work, reduces energy consumption, and reduces noise;

3. Each movable knife has 4 cutting edges, which can be rotated 90° to continue to use after wear; each fixed knife has 2 cutting edges, which can be rotated 180° to continue to use after wear; strengthen the replaceability of movable and fixed knives performance and life cycle, reducing costs;

4. The main shaft is driven by a gear reducer, running smoothly, with low noise and large torque;

5. Equipped with a hydraulic reciprocating pushing power system, the structure is firm and the operation is stable;

6. The whole system is controlled by PLC program, which can automatically reverse and stop, making the machine run more safely and reliably.

Single Shaft Shredder | Single Shaft Shredder

product description：

The single-shaft shredder can meet the waste recycling requirements of various industries, and is suitable for plastic, paper, wood, fiber, rubber, domestic waste recycling and processing, etc., with a wide variety of recyclable materials. It is suitable for recycling all kinds of bulk solid materials, refractory materials, plastic containers and buckets, and plastic pads. The discharge size can be as small as 20mm according to different needs. Various feeding hoppers can be provided according to customer needs. The equipment rotates at low speed, low noise and more energy saving.

Single Shaft Shredder | Single Shaft Shredder

working principle:

The material enters the chassis from the feeding hopper, and the pushing box pushes the material to the rotating knife roller under the push of the hydraulic cylinder, and the rotating moving knife and the fixed knife break the material. The broken material falls through the screen and is then conveyed through the auxiliary conveying equipment to the next process or for collection and packaging.
The material enters the inside of the shredding box through the feeding system. The box carries the shredding blade. The pushing box pushes the material to the vicinity of the blade. The material is torn, squeezed, and sheared by the shredding blade. Small pieces of material are discharged from the screen holes.

Single Shaft Shredder | Single Shaft Shredder

product advantages：

The blade is made of cold work die steel, which has good strength, high toughness and high cutting performance. The insert has four cutting edges and can be rotated 90° after wear for continued use.

External bearing design, waterproof and dustproof, prolong bearing service life.
Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsion.
The hard tooth surface reducer has high transmission efficiency, strong bearing capacity and low noise.

Application range:
Plastics – general purpose plastics, die blocks, etc. in injection molding, extrusion, film blowing, etc.
· Timber – wooden pallets, logs, wood offcuts, etc.
Paper – document paper, wrapping paper, cardboard, etc.
· Cables – copper core, aluminum core cable and composite cable
Aluminum – cans, aluminum shavings, etc.
· Chemical fiber – carpet, labor protection clothing, etc.
· Sponges – industrial waste
Composite materials – fiberglass products, automotive windshields, sealant strips, etc.
Destruction – imitations (fakes), substandard products, expired items, etc.
