Card Shredder | Magnetic Stripe Card Shredder | Chip Card Shredder | VIP Card Shredder

  • 所属分类:Card Shredder/Paper Shredder
  • 型号:SMD-50ND
  • 浏览次数:3036次
  • 发布日期:2019/6/11 15:44:24
  • 简介:Card Shredder | Magnetic Stripe Card Shredder | Chip Card Shredder | VIP Card Shredder
  • 产品概述

Card Shredder | Magnetic Stripe Card Shredder | Chip Card Shredder | VIP Card Shredder


Its main features are: large-scale processing, can use lighting, can be used in the office, can be used continuously. This series of models is designed for smashing IC cards, magnetic strip cards, and chip cards. Metal chips, magnetic strips, etc. and crush the card into 3-5mm particles.


一、Product application

This series is designed for the bank system, public security system, government secret unit, and enterprise card processing center with strict security. It is designed for the batch destruction of scrapped magnetic stripe cards, chip cards, bank cards, and credit cards. Cards are processed every hour. The volume can reach 700-30000 sheets, and the equipment is small in appearance, low in noise, convenient in movement, flexible in electricity consumption, and has the advantages of continuous work.

The 2019 new card crusher has a major upgrade in function and structure, which is more convenient to operate, safer to use, and more stable in performance!

The smashing security level can reach the NSA level 6 security level and can no longer be repaired to prevent information leakage!

Magnetic stripe cards, chip cards, bank cards, and credit cards contain a lot of confidential electronic information. Once the leakage is copied and used fraudulently, it will have unpredictable effects on units or individuals, so it is very important to effectively invalidate them. Some public security bureaus and banks and other confidential units have used Gu'an card crushing machines.

Card Shredder | Magnetic Stripe Card Shredder | Chip Card Shredder | VIP Card Shredder

二、Product Features

1. Because the crushed materials contain metal parts, the requirements for the material of the cutter are relatively high. When crushing plastic and metal chips, the cutter must have the characteristics of fast cutting, wear resistance and impact resistance. Suzhou Gu'an original alloy steel The cutting tool, the cutting edge material has high hardness, excellent machinability, strong wear resistance, and the blade back material has moderate hardness, good toughness and impact resistance.

2. The cutting angle design enables this series of shredders to shred plastic cards and metal chips, as well as the wrapping paper and wrapping film outside the cards, with high shredding efficiency.

3. The center shaft and the tool holder of the grinder are both processed by high-precision wire cutting, and then assembled by hydraulic pressure, and there is no welding point on the tool holder (if the tool shaft is welded and assembled, it will be unevenly heated during the welding process, resulting in The central axis is deformed and affects the service life of the machine),

Magnetic stripe card shredder, chip card shredder


3. Product performance

⑴ compact design, small size of the machine, beautiful appearance;
⑵ Low noise, idling noise is about 60 decibels, suitable for office or public business outlets;
(3) No need for industrial power supply, the machine is equipped with a plug, and the single-phase civil power supply is plug and play;
⑷ Gu'an card crusher uses ergonomics, the card input height is about 0.9 meters, and the work is only a matter of hands;
⑸ Humanized design, simple operation, button switch control, no need for on-the-job training;
⑹ Box-type design, all transmission parts are hidden in the box, safe operation;
⑺ Simple maintenance, using low-heat Taiwanese motor, the machine life is longer;
⑻ The crushed materials are stored in the box of the card crusher, which can be cleaned regularly, and the workplace is clean and pollution-free


  New Generation Card Shredder | Card Shredder Product Description:

1. Destroy and smash various smart cards to prevent data leakage

2. Airtight box design, low working noise, no dust leakage

3. Simple operation and almost no maintenance

4. With casters, easy to move, plug and play

5. Small, high efficiency, can destroy nearly 10,000 bank cards per hour

6. Can work continuously for 24 hours

7. The crushing particle size can be adjusted according to the requirements of the confidentiality level, up to the level of 6 confidentiality requirements

8. Bank cards can be crushed within 10 million pieces without sharpening, super durable

9. When the box door is opened, the machine automatically stops to protect the safety of the operator


销毁对象destroy object

1. ID cards, bank cards, credit cards, telephone/recharge cards, gas cards and other smart cards with chips
2. Plastic card sleeves, other small plastic products
3. Disc, DVD, CD
4. Statements, envelopes, cardboard
5. All kinds of documents


Card Shredder | Magnetic Stripe Card Shredder | Chip Card Shredder | VIP Card Shredder

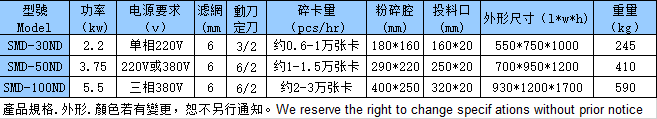

四. Technical parameters SPECIFICATIONS



 五、Customer FAQ
 Q: Can this card shredder be used to shred smart cards with metal chips?
Answer: Yes, it is a wear-resistant tool material specially designed for plastic cards and metal chips, with long service life, fast cutting and labor-saving

Q: When this card shredder smashes smart cards with metal, will it be stuck or the tool will be damaged?
Answer: First of all, this machine is designed for cards with metal, so it will not get stuck under normal use;
Secondly, the tool is also designed for materials with metal, which will not be damaged in normal use, but will wear out.

Q: How many card cutters will be worn out of the cutters of this card crusher?
Answer: Take 7 grams of plastic cards as an example, under normal use, 8.5 million plastic cards can be smashed, and the tool needs to be ground or replaced.

 Q: Can the chip be smashed and destroyed?
Answer: Yes, this smart card shredder can not only smash plastic cards, but also smash and destroy the chips and magnetic strips in the plastic cards, so
 This machine is also often used in occasions where data confidentiality is required.
 Q: How is this card shredder different from the office paper shredder?
Answer: The paper shredder can only shred paper, and the efficiency is low. It cannot shred plastic cards. It will damage the machine when encountering paper clips or staples.
 The card shredder is designed for shredding plastic cards, and can shred computer discs, thick or thin paper, metal chips, magnetic stripe cards, etc.
 Q: Is the safety of the card shredder guaranteed?
A: We have multiple safety protection designs: ①The box is fully enclosed, and there is only one feeding port for feeding materials; ②When the box is opened, when the tool is exposed, the machine will automatically power off for protection
Q: Is the card shredder complicated to use, and are there any requirements for electricity? A: It is very simple, a power button, a power button to control; electricity is an ordinary office electrical socket, plug it in and you can use it. Q: What kind of shredding effect can the card shredder achieve?
Answer: It can crush the input material into small particles of about 4mm. Q: What are the advantages of Gu'an card crusher?  Answer: Gu'an card crusher is designed for office environment and has the following advantages:
①Only need to put in the material, the machine will automatically complete the crushing work;
②The crushed broken cards are concentrated in the material box, and the full material can be cleaned out before continuing to store the material;
③Specially designed mute system to meet the use of quiet environment; ④High-hardness and special-treated knives can break staples, paper clips, IC cards and CD-ROMs.
Q: What are the use cases of Gu'an card crusher?
Answer: Banking system, National Security Bureau, a certain department of the People's Liberation Army, mobile company, Transportation Administration
Q: Can this card shredder be used to shred smart cards with metal chips?
Answer: Yes, it is a wear-resistant tool material specially designed for plastic cards and metal chips, with long service life, fast cutting and labor-saving
Q: When this card shredder smashes smart cards with metal, will it be stuck or the tool will be damaged?
Answer: First of all, this machine is designed for cards with metal, so it will not get stuck under normal use;
Secondly, the tool is also designed for materials with metal, which will not be damaged in normal use, but will wear out.



六、picture display
