Masterbatch Machine | Masterbatch Metering Machine | Masterbatch Feeder

  • 所属分类:Metered Mixed Screening
  • 型号:SCM系列
  • 浏览次数:3501次
  • 发布日期:2019/6/10 21:03:09
  • 简介:

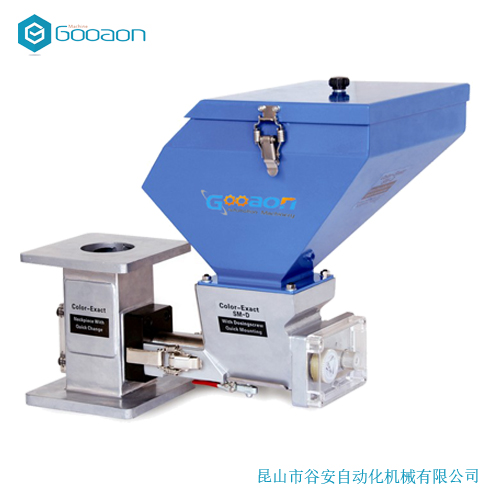

    Masterbatch Machine | Masterbatch Metering Machine | Masterbatch Feeder

  • 产品概述


Masterbatch Machine | Masterbatch Metering Machine | Masterbatch Feeder

一、Product application


Gu'an color masterbatch metering machine is suitable for automatic proportional metering and feeding of new and inferior materials, color masterbatch or additives in plastic molding production.


二、product description

This series of models adopts precision DC brushless motor.
According to the pre-set addition ratio and parameters, the all-digital microcomputer control system automatically converts the set conditions into rotational speeds, drives the stainless steel 304 precision metering screw through the coupling, and feeds the injection molding machine or extrusion (calendering) The material to be added is spit out from the sol cylinder. For example: masterbatch, recycled (nozzle) material, additives, auxiliaries, etc. The error value is not higher than 1%.
The product has two modes, which are suitable for plastic injection molding and extrusion molding. The metering screw is divided into 8, 12, 16, 20, 24, etc., and the DC brushless motor is matched with high-efficiency parallel gear reducers with different reduction ratios.

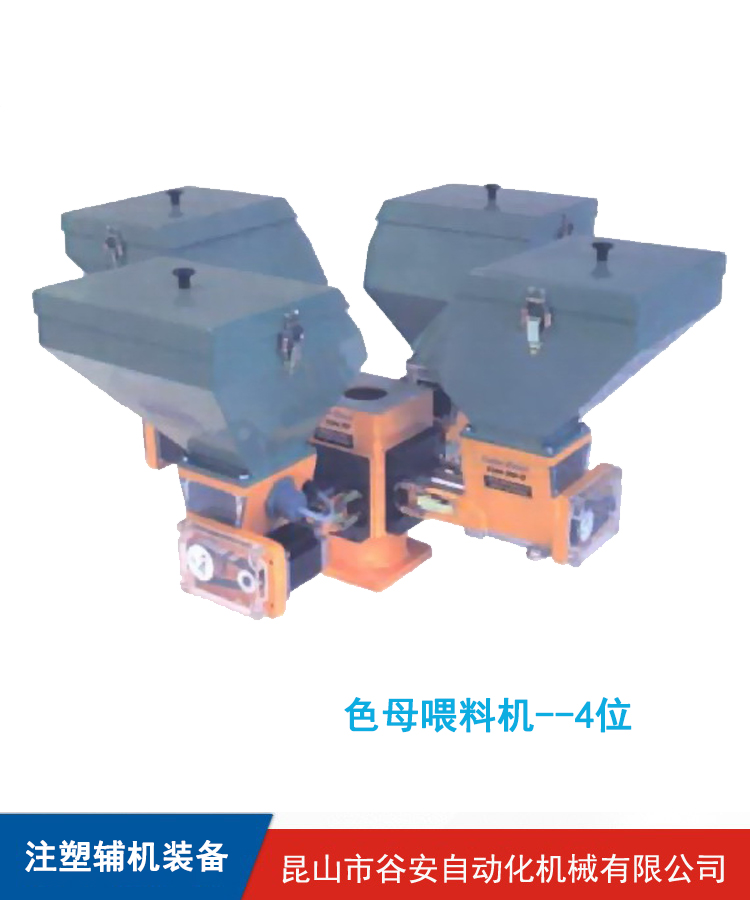

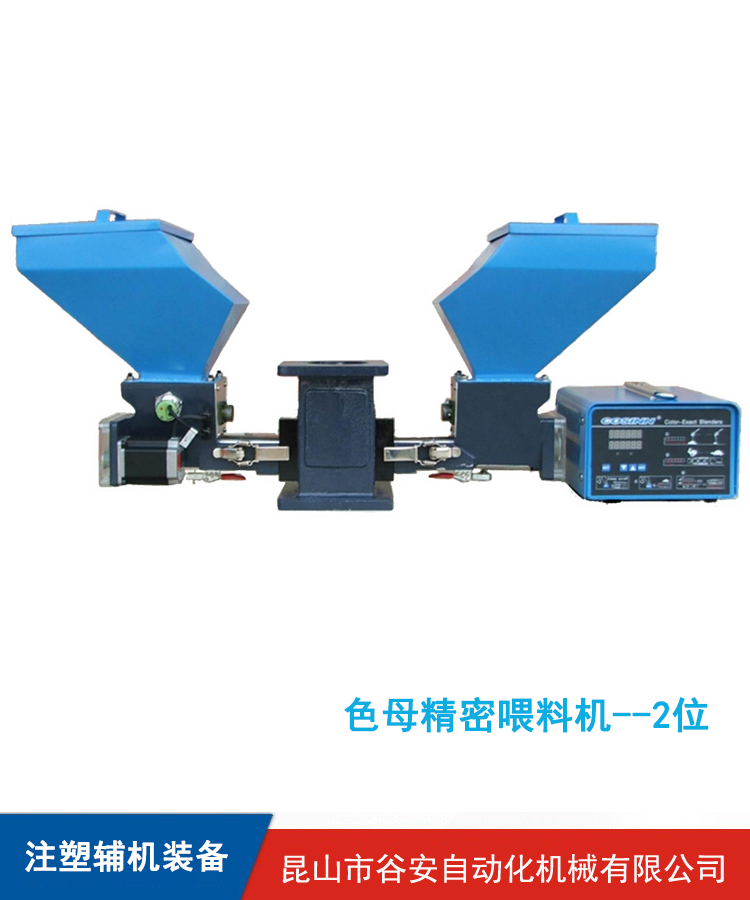

A variety of models such as double-station and multi-station measuring machines can be derived. For example, different output capacities of 0.1-100kg/h are provided for customers to choose. In addition, it can be matched according to user needs to meet the use of different occasions and different fields.


三、Product Features

1. Adopt DC brushless motor, no maintenance required, with screw jam, voltage under-voltage, over-voltage, over-current, disconnection protection, to ensure the continuous and normal operation of the machine.
2. The controller has a permanent memory and storage function of 50 sets of data, which is convenient for managing molding conditions and formulas.
3. It can meet the dry contact and voltage of injection molding machine, 0-5V, 0-10V, 4-20MA, 0-20MA, frequency, digital and other signal input of extruder, covering almost all plasticizing signals of plastic molding equipment ( Signal type needs to be informed in advance).
4. Modular assembly structure, easy disassembly and assembly, can quickly replace materials.
5. Optional material level detection sensor, alarm prompt for lack of material.
6. Optional stirring base to ensure uniform mixing of materials.
7. The main screw of the extrusion (calender) machine can be accelerated and decelerated synchronously.
8. The unique compensation and optimization concept of the controller ensures that the measurement of additives is always accurate.
9. Offline simulation function, in the process of equipment debugging, the additives can be quickly adjusted to the ideal amount, reducing the loss of materials during the debugging process, and greatly reducing the manpower and material consumption during refueling and debugging.
10. The special mode that can be used with chemical filament monofilament and filament spinning equipment can ensure that each melt metering pump of the spinning equipment can be adjusted at will to ensure high stability of additives.
11. The special controller with extended functions can be equipped with a weighing control module to realize digital control of the proportion of added materials and ensure the accuracy of measurement to a greater extent.

12. The optimized and improved design of the reinforced mounting base for the blanking mechanism ensures that the amount of large color masterbatch can be used normally, even if it is a large amount of recycled material, it can also be adapted.


Masterbatch Machine | Masterbatch Metering Machine | Masterbatch Feeder

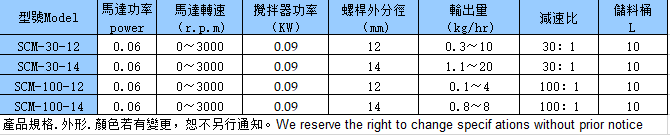

四、Product parameters
